Arduino STEM RBT project: Arduino IoT Smart AC Monitoring System with Durian Uno
Price RM247.10
Product SKU D-UNO-ACSYSTEM
Brand Mybotic
Size (L x W x H) 27.4 cm x 16.9 cm x 5 cm
Availability 13
Quantity
Description
Highlight
  • Wide Vin range: 3V to 12V
  • Simple wiring
  • Wiring without breadboard
  • Direct connect to output without external components
  • Code using Arduino IDE
  • Use Blynk App for IoT
  • User manual is provided
  • Arduino code is provided

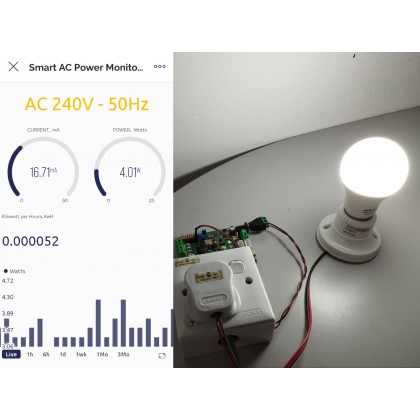

This IoT Smart AC Power Monitoring System with Durian Uno enables users to effectively manage and monitor their electricity consumption. Through the Blynk mobile application, the system will enable monitoring and analysis of the power parameters of AC appliances and devices.

With the combination of Blynk and the Durian Uno board, you can:

  • Measure and display crucial power parameters, including AC current, power and power in (Kilowatt per Hour).

  • The Blynk app will provide graphical representations of power data in graph, to enhance data visualization and understanding.

By combining the Current Transformer Module 5A Range Single-Phase AC Current Sensor module, Durian Uno microcontroller and Blynk Iot Platform, this project offers an efficient and user-friendly solution for monitoring and managing power parameters in real-time.



Features:

  • Wide Vin range: 3V to 12V
  • Simple wiring
  • Wiring without breadboard
  • Direct connect to output without external components
  • Code using Arduino IDE
  • Use Blynk App for IoT
  • User manual is provided
  • Arduino code is provided



Schematic Diagram :

Packing List :

No.
Item
Quantity
1.
Durian UNO V2 board + ESP8266 Module
1
2.
USB Type-C Cable
1
3.
Current Transformer Module 5A Range Single-Phase AC Current Sensor Module
1
4.
AC Socket Box
1
5.
13A 3 Pin Plug Top
1
6.
AC to DC Step Down Module (220V to 5V 700mAh) with wires.
1
7.
DC Male Power Jack Connector to DG126 Converter Fit for Arduino Power Jack
1
8.
Multicore PVC Cable ( 1 Meter )
1
9.
Jumper Wires 20 CM Female to Female ( 10 Pieces )
1



Functionality :



Guidance for make IoT Smart AC Power Monitoring System with Durian Uno:

Attachment :
